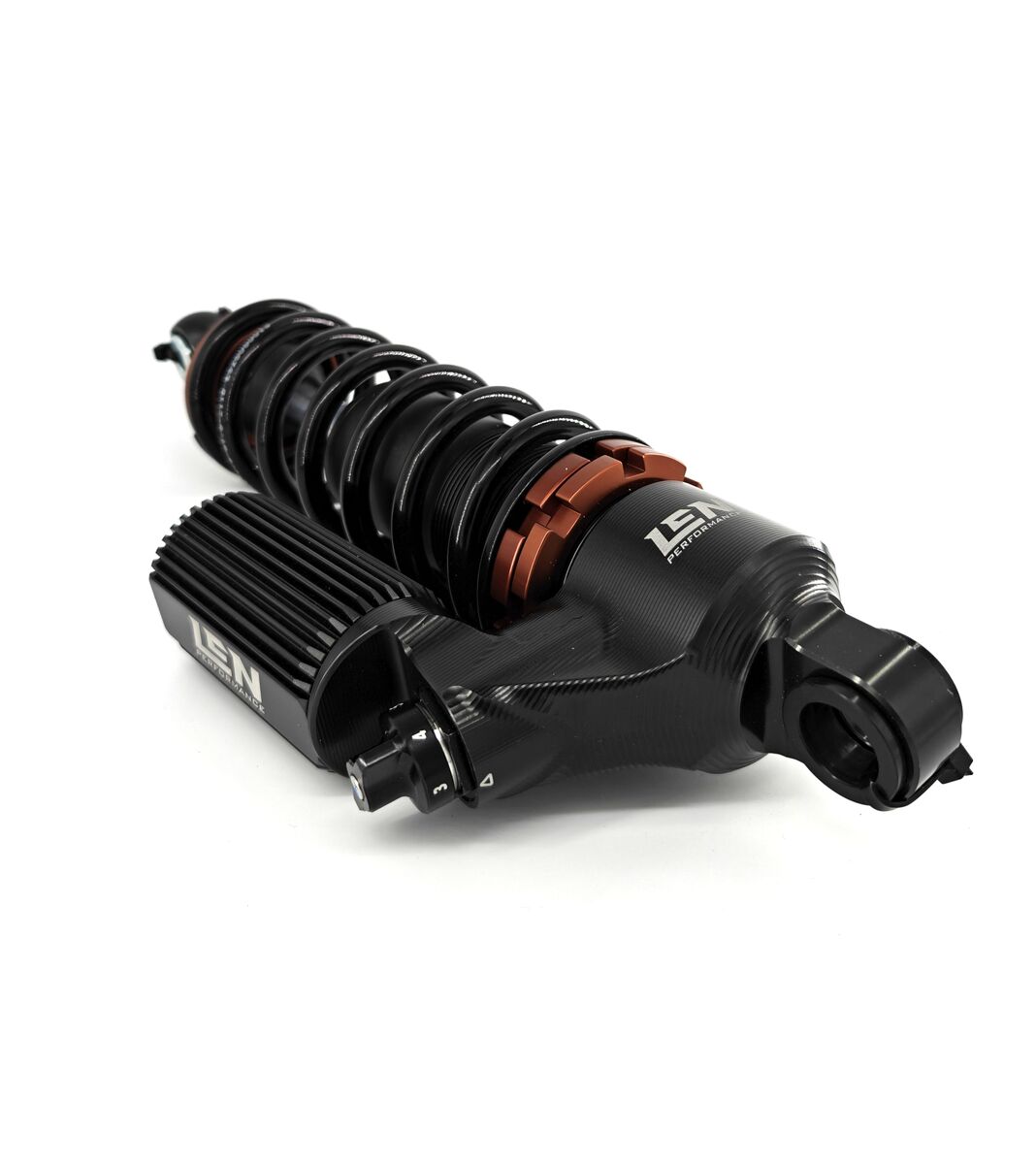

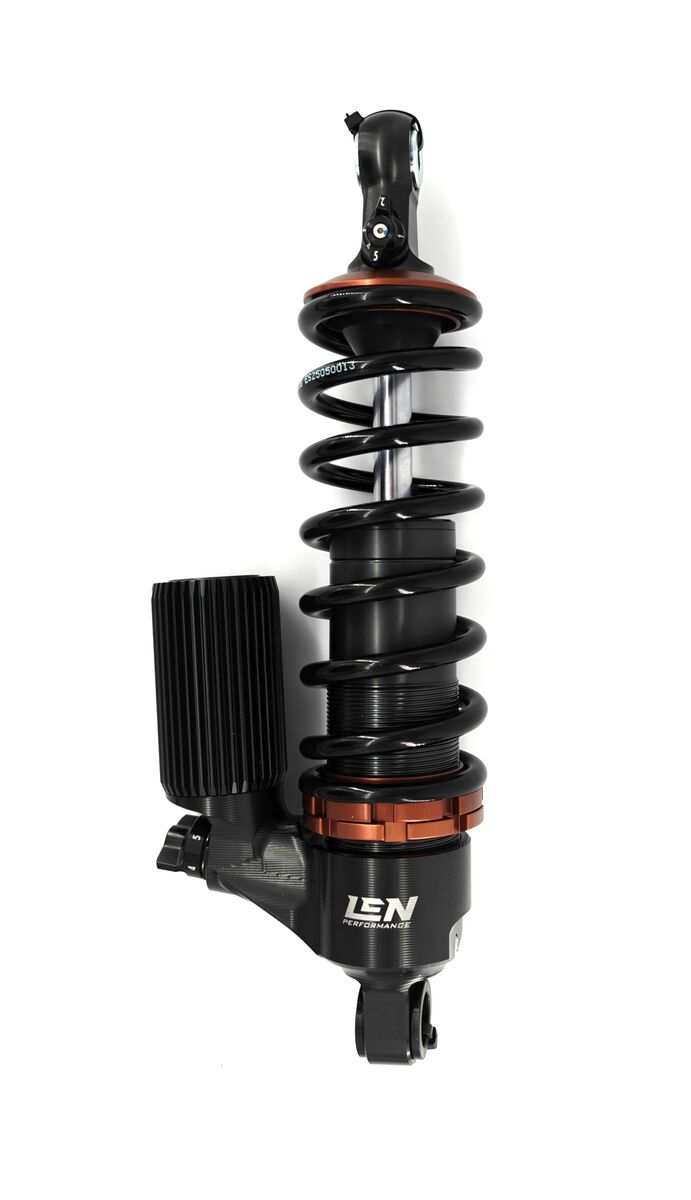

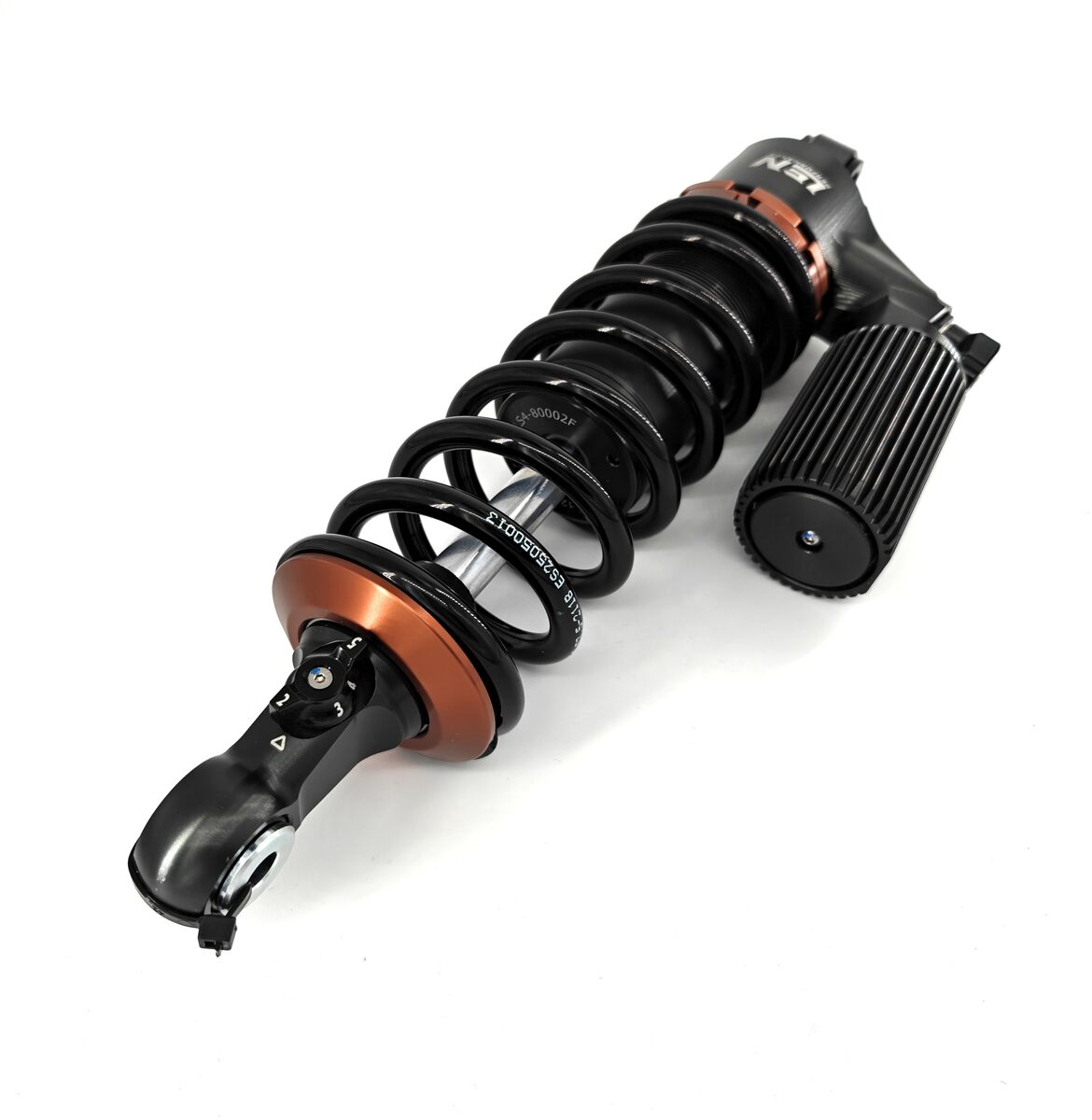

SHOCK LOCATION: FRONT TRACK SHOCK
SHOCK WEIGHT (lbs) 5.51
SHOCK LENGTH OPEN 351mm / 13.82inch
SHOCK LENGTH CLOSED 261mm / 10.28inch
SHOCK STROKE LENGTH 90mm / 3.54inch
EYELET TOP ID 20mm / 0.79inch
EYELET TOP WIDTH 25.4mm / 1inch
EYELET BOTTOM ID 10mm / 0.4inch
EYELET BOTTOM WIDTH 25.4mm / 1inch
SPRING DIAMETER 72mm / 2.84inch
COMPRESSION ADJUSTMENTS: 5 Clicks
REBOUND ADJUSTMENTS: 5 Clicks
LYNX 49 RANGER 600 ACE STD 2020-22
LYNX 49 RANGER 600R ETEC PRO 2020-22
LYNX 49 RANGER 900 ACE 2020-21
LYNX 49 RANGER 900 ACE PRO 2021-22
LYNX 49 RANGER PRO 600R E-TEC 2023-25
LYNX 49 RANGER PRO 850 E-TEC 2024-25
LYNX 49 RANGER PRO 600R ETEC 2023
LYNX 49 RANGER ST - 900 ACE TURBO 2023-24
LYNX 49 RANGER ST 900 ACE 2023-24
LYNX 49 RANGER STD 600 ACE 2023-25
LYNX BOONDOCKER 3900 600R ETEC 2020-22
LYNX BOONDOCKER DS 850 E-TEC 3900 2022
LYNX BOONDOCKER DS 850 E-TEC 4100 2022
LYNX SHREDDER 600R ETEC 146 2023-25
LYNX SHREDDER 600R ETEC 154 2024-25
LYNX SHREDDER DS 3900 850 ETEC 2023
LYNX SHREDDER DS 3900 850 E-TEC TURBO R 2023-24
LYNX SHREDDER RE 3700 850 ETEC 2023-24
LYNX SHREDDER RE 3700 850 ETEC TURBO R 2024
LYNX SHREDDER RE 3900 850 ETEC 2023-24
LYNX SHREDDER RE 3900 850 ETEC TURBO R 2023-24
LYNX XTERRAIN 3700 600 EFI 2021-24
LYNX XTERRAIN 3700 600R ETEC 2021-24
LYNX XTERRAIN 3900 600R ETEC 2021
LYNX XTERRAIN 600 EFI 146 2024
LYNX XTERRAIN 600R ETEC 146 2024
LYNX XTERRAIN PRO 3900 600R ETEC 2021-23
LYNX XTERRAIN PRO 3900 850 ETEC 2021-23
LYNX XTERRAIN STD 3700 600 EFI 2022-23
LYNX XTERRAIN STD 3700 600R ETEC 2022-23
LYNX XTERRAIN STD 3900 600 EFI 2022-23
LYNX XTERRAIN STD 3900 600R ETEC 2022-23
