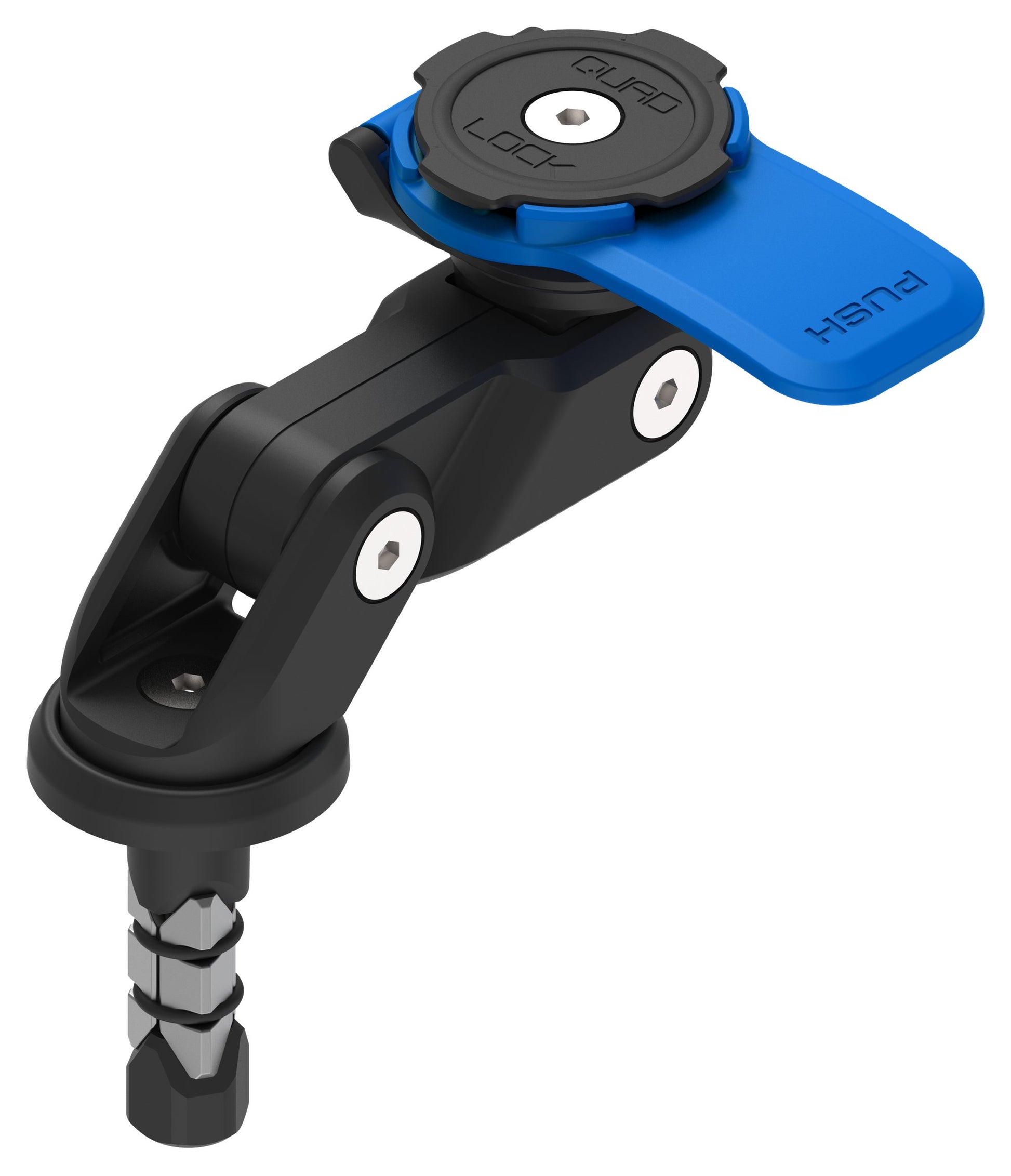

Quad Lock Motorcycle Fork Stem Mount (V2)

The Quad Lock Fork Stem Mounts are designed for motorcycles that require mounting in the tube of the fork stem.

Features:

Secure - Patented Dual Stage Locking Mount

Made from tough glass filled nylon

Stainless steel hardware

Multiple mounting configurations

Fits a large range of stem tube hole sizes from 12.7mm (½”) to 25.4mm (1”)

Suits cylindrical tube stems

Preload resistance when adjusting position provides quality feel



Compatible with:

- Quad Lock Cases & Universal Adaptors

- Quad Lock Motorcycle Accessories (Vibration Dampener, Wireless/USB Chargers)

- Quad Lock 360 Compatible Products

- Quad Lock Coloured Levers

- Stem Hole SIzes:

- Small Stem Spacers: 12.7mm (1⁄2”) – 19mm (3⁄4”) Diameter

- Medium Stem Spacers: 18.6mm ~(3⁄4”) – 25.4mm (1”) Diameter



Included in box:

1x Quad Lock Index Head Assembly (with blue lever)

1x Quad Lock FSM Mount Assembly inc. 1 x Small Spacer Assembly

1x Medium Spacer Assembly

1x 3mm Allen (Hex) Key



Materials:

Glass Filled Nylon

316 Stainless Steel Hardware

Zinc Alloy Mount Spacers

Recommended torque rating:

Index Head Screw - 2.0 Nm Max.

Extension Arm Screw - 3.5 Nm Max.

Stem Base - 3.5 Nm Max.



Measurements:

Width: 67.6mm Overall; Base Diameter: 32mm

Length: 89.4mm Extended / 68mm Collapsed

Height: 90.7mm Overall / 50.4mm Base to Top of Index Head
