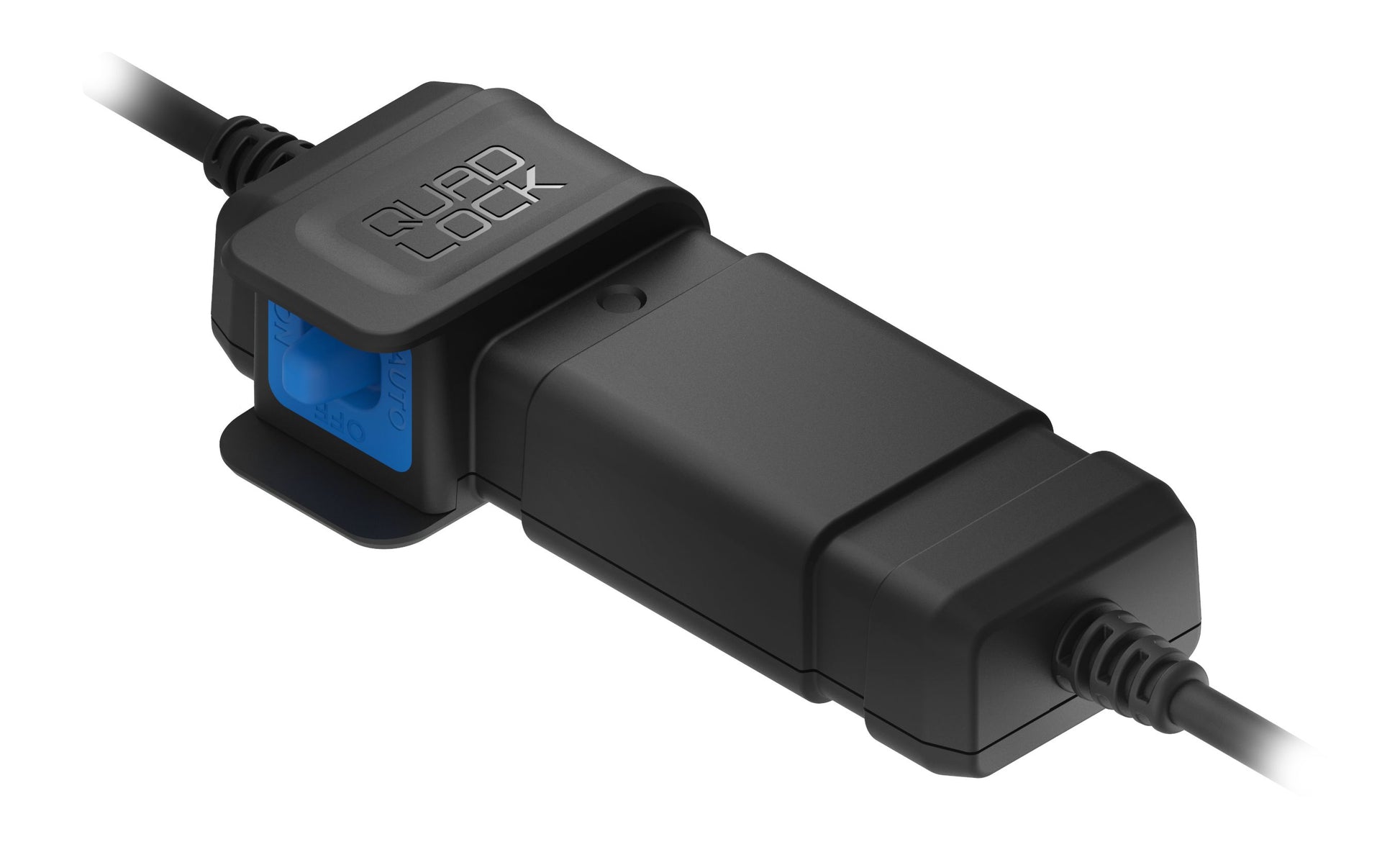

Quad Lock Waterproof 12V to USB Smart Adaptor

Features:

Provide power to Quad Lock Weatherproof Wireless Charger via SAE / Battery Ring Terminal

Auto switching mode provides power only when engine is running to avoid battery drain

IP66 Water resistant

Reverse Polarity Protection

3A rated in-line fast blow fuse to avoid battery drain in rare fault situation



Compatible with: Quad Lock Weatherproof Wireless Charging Head (V3 / V2)



Included in box:

1x Waterproof 12V to USB Smart Adaptor with 1.5m USB-A Female Port and 10cm SAE Cable

1x 1m SAE to Ring Terminal Cable with in-line fuse

1x USB-A Seal Boot

5x 5mm x 250mm Zip Ties



Materials:

Smart Adaptor Housing: Polycarbonate (PC)

Toggle Switch: TPU

Cables / SAE, USB & Ring Terminal Overmoulds: PVC

Ring Terminals: Brass



Input: 12V - 24V DC

Output: USB-A up to 18W Max Power (5V/3A, 9V/2A, 12V/1.5A)

IP rating: IP66 Water Resistant
